2DOFCompactVR-ready

SuperSim 2DOF

Compact two-axis motion simulator. 100 or 150 kg payload, up to 60° of travel, 1.1–1.5 kW from a wall socket.

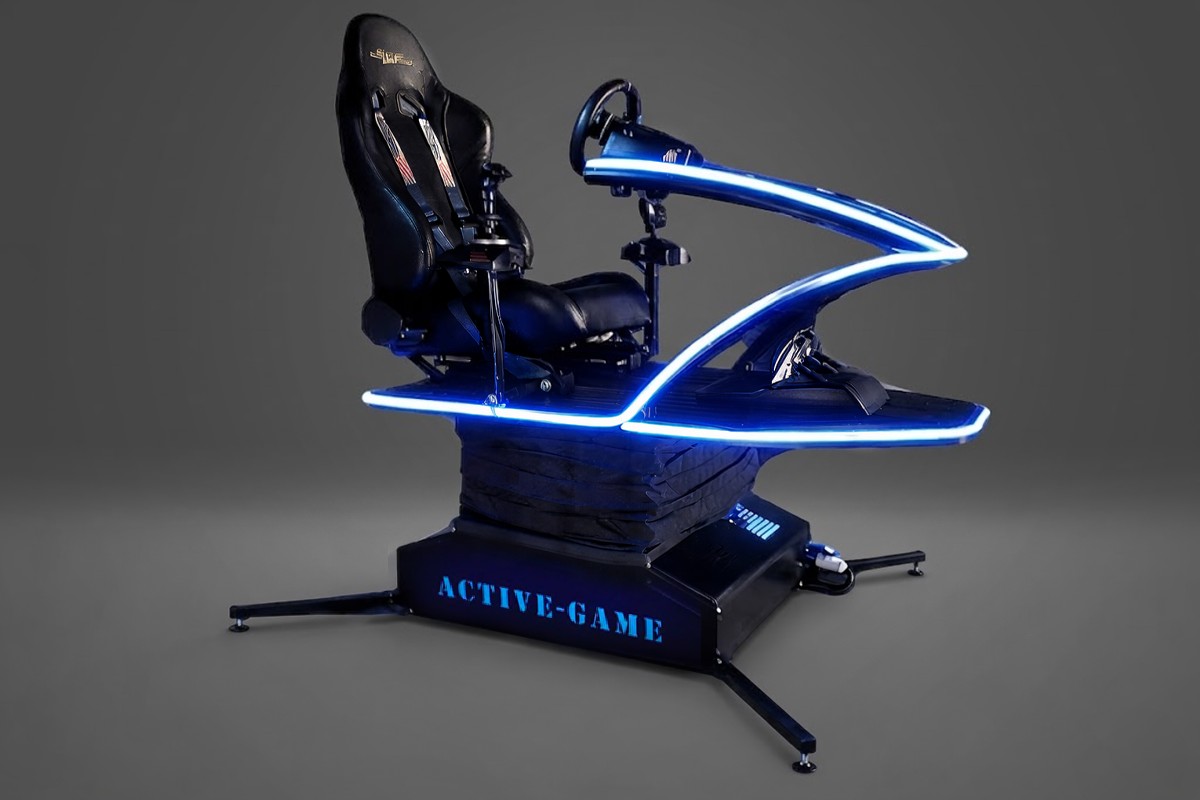

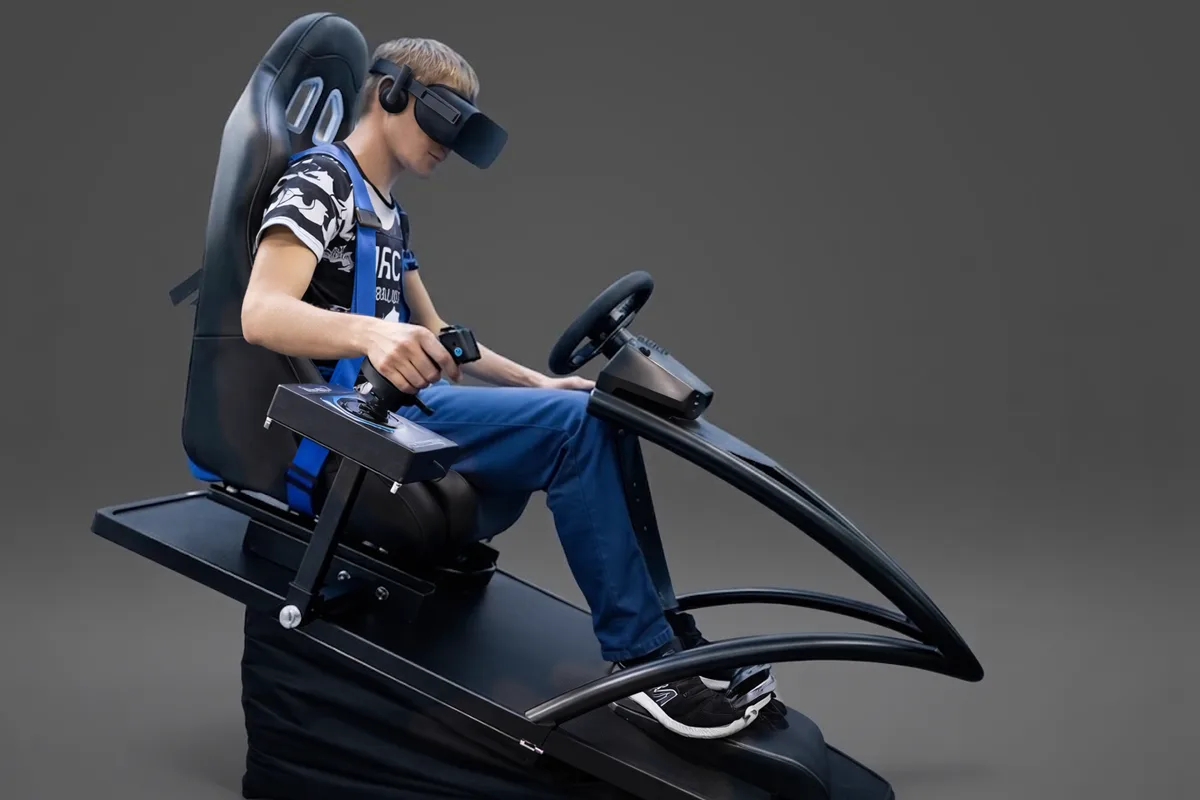

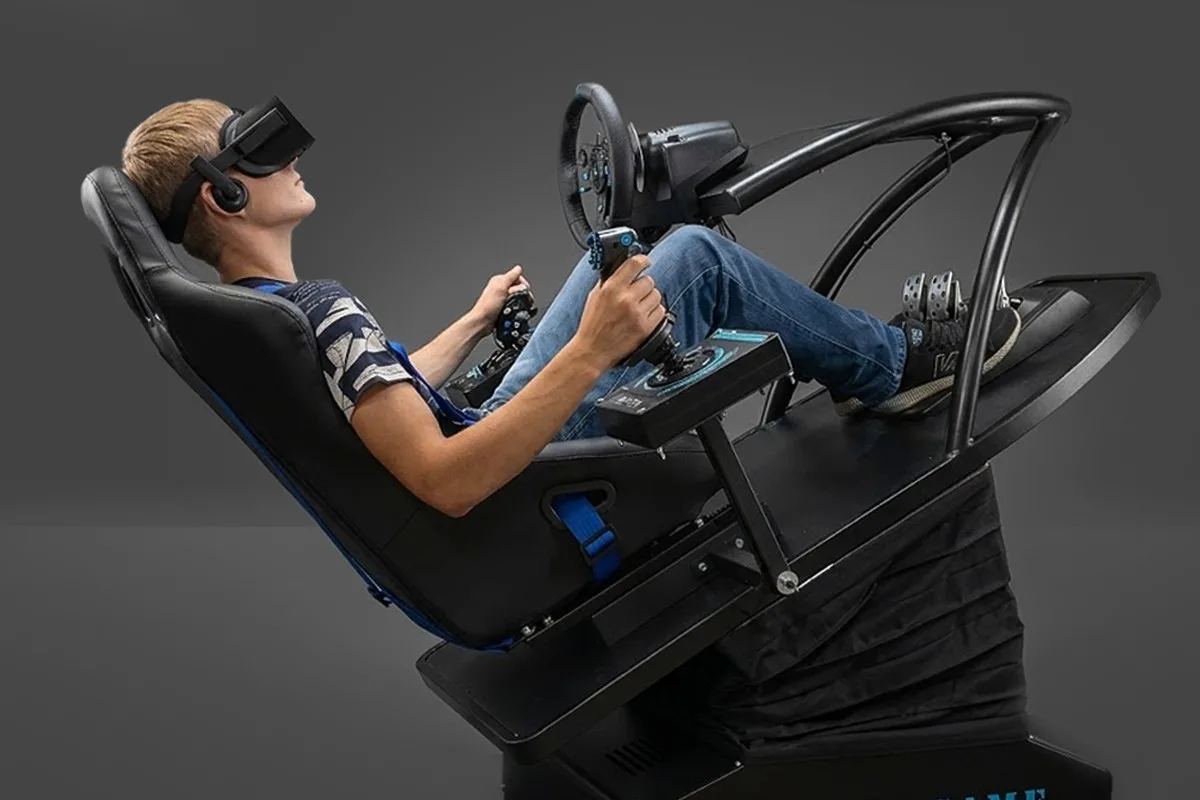

SuperSim 2DOF is the smallest complete motion simulator we build — a roll-and-pitch platform, cockpit, Gmotion controller and the G-Control motion software in a 150 × 75 cm footprint. Up to 60° of travel at 200°/s reads kerbs, road texture and turbulence clearly; the stiff frame keeps VR tracking stable. Two classes: SuperSim 2DOF 100 (100 kg, 1.1 kW) and SuperSim 2DOF 150 (150 kg, 1.5 kW), both on 220 V single-phase with no hydraulics or compressor. G-Control ships pre-tuned for the major driving and flight titles with an open profile editor for the rest, and talks to any wheelbase, pedals or headset you specify. Used in training rooms, driver-safety programmes, trade-show builds, university labs and premium home installations. Lead time 6–8 weeks; worldwide shipping.

Request a QuoteView specs
SuperSim 2DOF
SuperSim 2DOFSuperSim 2DOF

Specifications

Payload
up to 100 kg
Degrees of freedom
2 (roll / pitch)
Roll / Pitch
up to 50°
Angular speed
up to 160°/s
Angular acceleration
up to 1 600°/s²
Dimensions (L×W×H)
150 × 75 × 120 cm
Weight
120 kg
Power
220V single-phase
Power consumption
1.1 kW
VR compatible
Yes

Range of motion is full travel between end positions; single-axis maximum values. Wheelbase, pedals, flight controls, PC, monitors and VR are optional and quoted as part of the package.

Typical use cases

  • Training rooms and driver-safety programmes
  • Light-aircraft and rotorcraft procedural trainers
  • Trade-show, showroom and brand-activation builds
  • University and vocational training labs
  • Premium home installations with direct-drive wheelbases

Configure your SuperSim 2DOF

Choose a payload class and the add-ons you need. Direct-drive wheelbase, pedals, triple-screen mount and VR are quoted as part of the package.

Configure a SuperSim 2DOF

Tell us your software library, peripherals and shipping country. A configured quote and delivery date come back within one business day.
