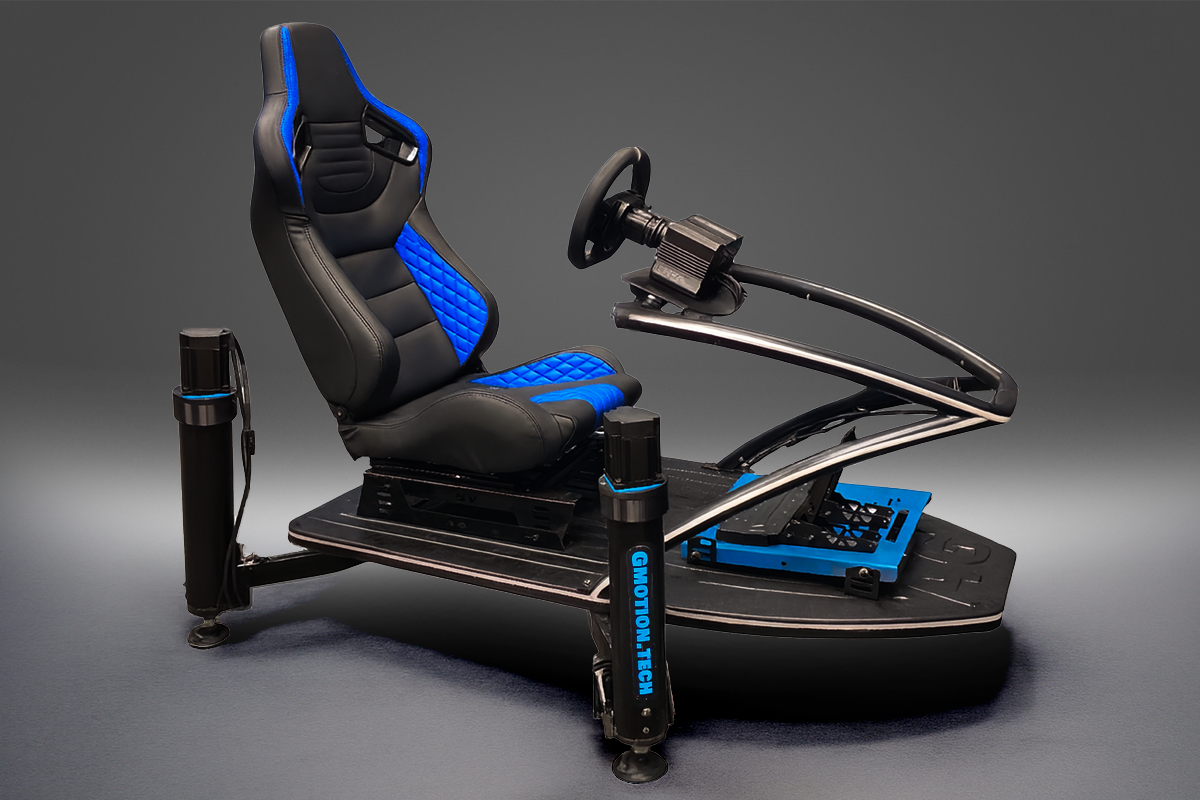

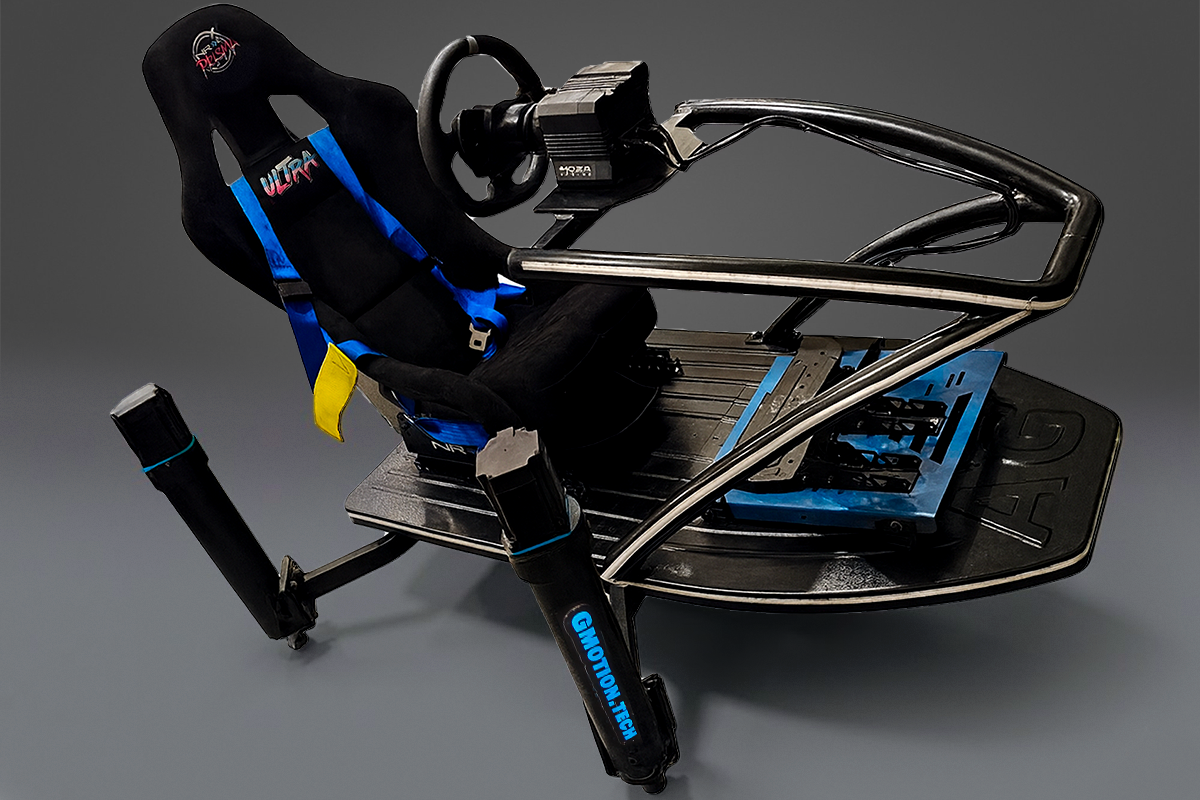

SuperSim 3DOF

Three-axis servo motion simulator — pitch, roll and heave on four Gmotion servo actuators. 100 or 200 kg payload, single-phase.

SuperSim 3DOF adds heave to the two-axis SuperSim 2DOF: four servo actuators deliver pitch, roll and vertical motion with onset sharp enough to reproduce kerb strikes, bumps and load transfer rather than sustained tilt alone. Up to 200 kg payload covers a heavy seat, a direct-drive wheelbase, three screens or a VR headset. The Gmotion controller and G-Control motion software ship pre-tuned for the major driving and flight titles, with washout filters and per-axis gains exposed for operators who want to tune the feel. 110–220 V single-phase, 3–4 kW, no hydraulics — installs on a flat floor without electrical work. The open cabin frame is serviceable in the field. Delivered to driver-development programmes, racing schools, OEM ride-and-handling evaluation and high-end residential installations across North America, Europe and the Middle East. Lead time 6–10 weeks.

Request a QuoteView specs
SuperSim 3DOF
SuperSim 3DOFSuperSim 3DOF

Specifications

Payload
up to 100 kg
Degrees of freedom
3 (roll / pitch / heave)
Roll / Pitch
up to 25°
Heave
up to 175 mm
Angular speed
up to 180°/s
Angular acceleration
up to 180°/s²
Linear speed
up to 250 mm/s
Linear acceleration
up to 15 000 mm/s²
Dimensions (L×W×H)
150 × 110 × 80 cm
Weight
90 kg
Power
110–220V single-phase
Power consumption
3 kW
VR compatible
Yes

Range of motion is full travel between end positions; single-axis maximum values. Wheelbase, pedals, flight controls, PC, monitors and VR are optional and quoted as part of the package.

Typical use cases

  • Driver-development programmes and racing schools
  • OEM and tyre-manufacturer ride-and-handling evaluation rigs
  • Human-factors and motion-cueing research
  • Esports venues and competitive installations
  • Serious residential simulator rooms
