DragonSim

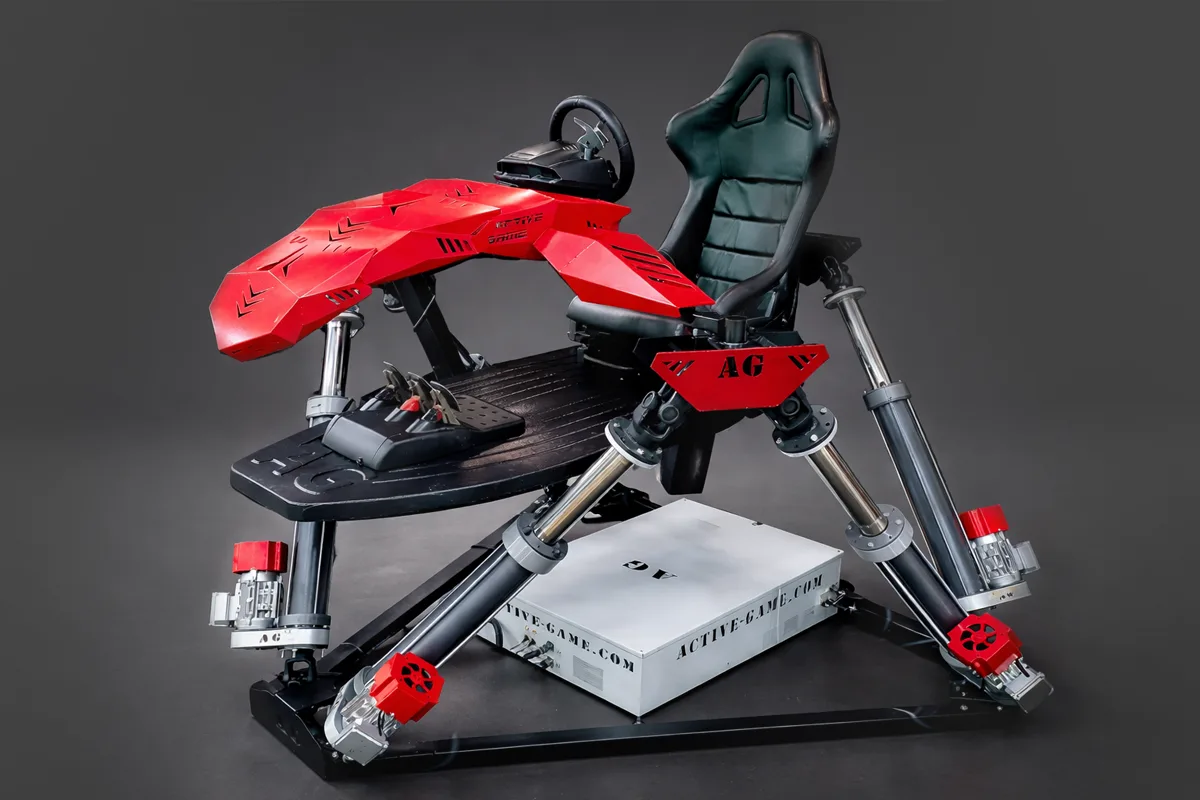

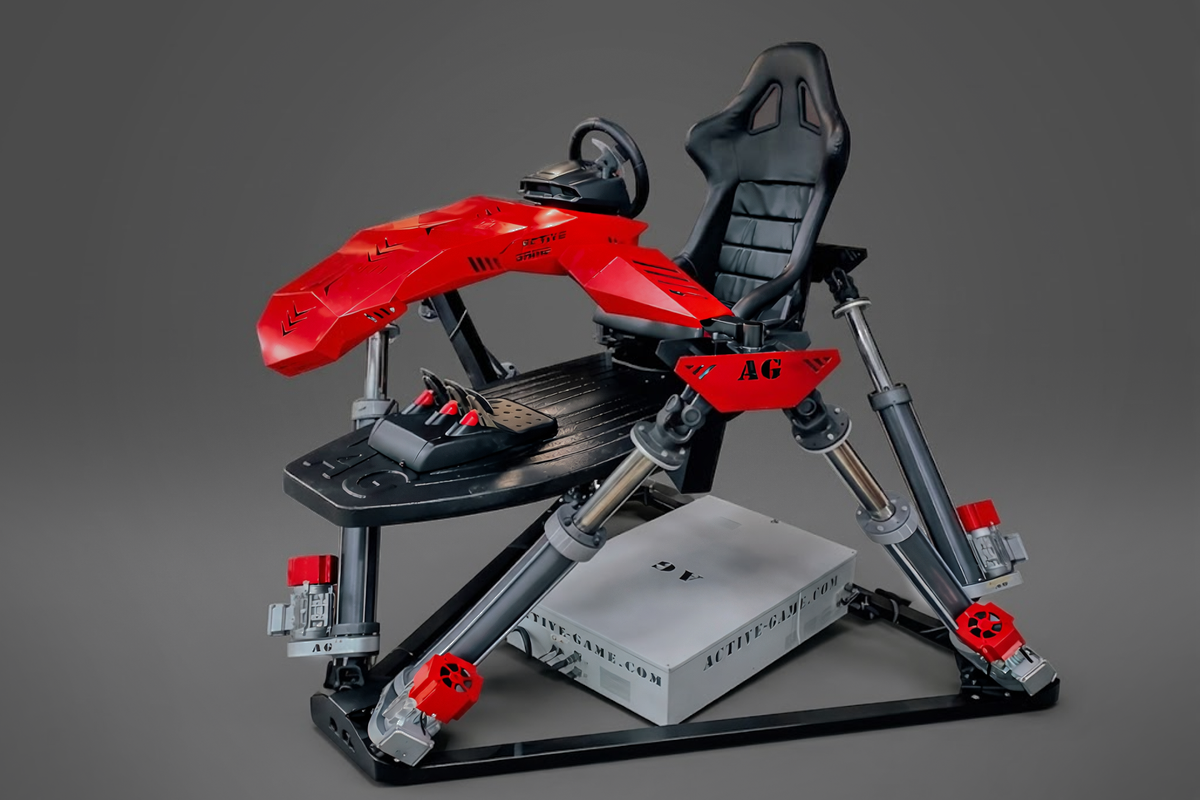

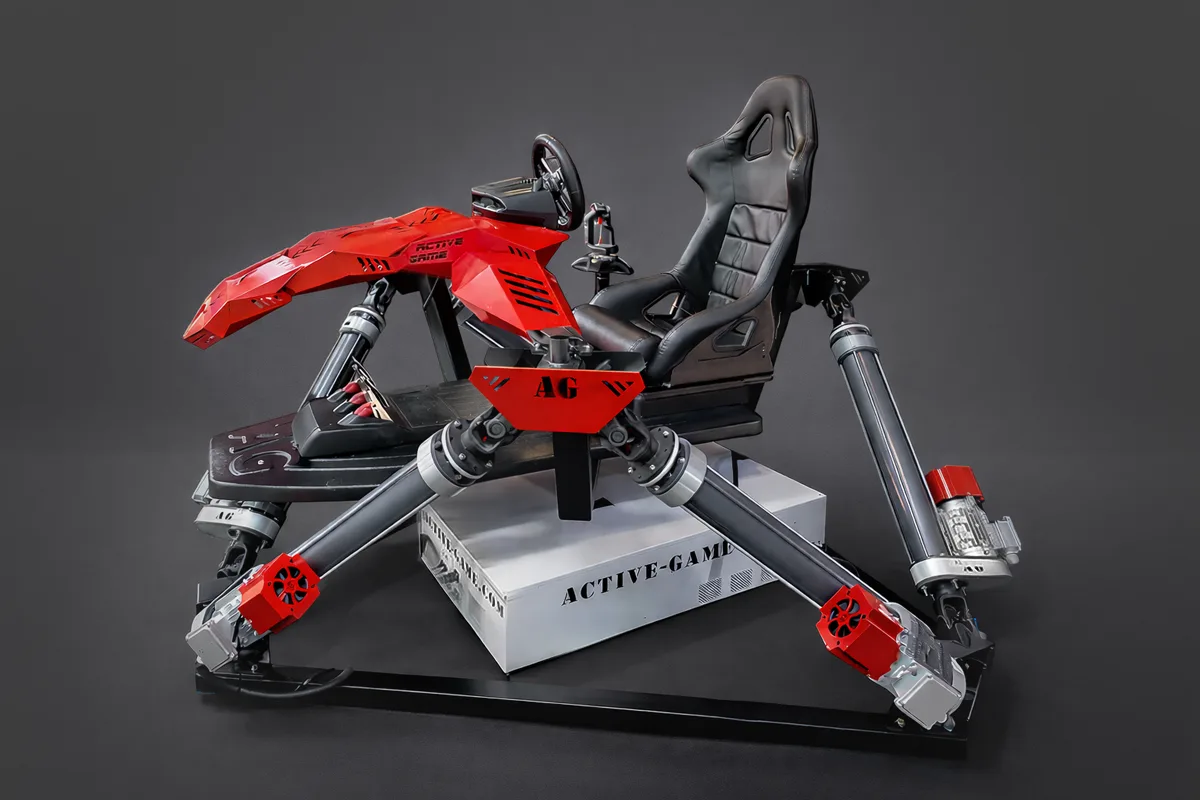

Six-axis motion simulator on a Stewart hexapod of Gmotion linear actuators. 150 or 300 kg payload, single-phase power, VR-ready.

DragonSim brings the full six degrees of freedom of our industrial platforms — pitch, roll, yaw, heave, surge and sway — into a complete, ready-to-run simulator. Six Gmotion linear actuators, the Gmotion multi-axis controller and the G-Control predictive motion software: the entire motion loop is engineered and built in-house. Two classes: DragonSim 150 (150 kg payload, 400 mm travel, 400 mm/s) and DragonSim 300 (300 kg, 600 mm travel, 500 mm/s, 360°/s). Both run from a 220 V single-phase supply with no hydraulics or compressor. The cabin frame is open and serviceable; open or enclosed cabins, triple-monitor mounts and VR headsets are specified per order. Built for training organisations, driver-development programmes, motion-cueing research groups, premium showroom installations and serious private users who want true six-axis motion without stepping up to an OEM platform. Lead time 8–12 weeks.
