6DOF Geared Platform

Six-axis motion platform on servo gear-motors — flatter, quieter and lighter on stand-by power than the actuator hexapod. 500 to 2,000 kg.

Same six-axis Stewart geometry as our actuator platform, with each leg driven by a Gmotion servo gear-motor with its own encoder and closed-loop current-controlled drive. The gear-motor design trades peak stroke for a lower profile, quieter operation and lower idle consumption — the right choice where ceiling height, noise budget or duty cycle matter more than peak acceleration. Control electronics, firmware and the G-Control motion software are shared with the entire Gmotion lineup, so an integrator running one platform family can mix actuator and geared units under a single software stack. Payload classes 500, 1,000 and 2,000 kg at 85–100 cm platform height, 220 V single-phase through the 1,000 kg class; mounting interfaces, frame height and travel envelope are tuned to the cabin or fixture you intend to mount. What ships: the platform, Gmotion controller and drives, a G-Control software licence, drawings and interface documentation. No third-party licences, no vendor lock; source access for OEM partners under NDA. Lead time 8–14 weeks.

Request a QuoteView specs

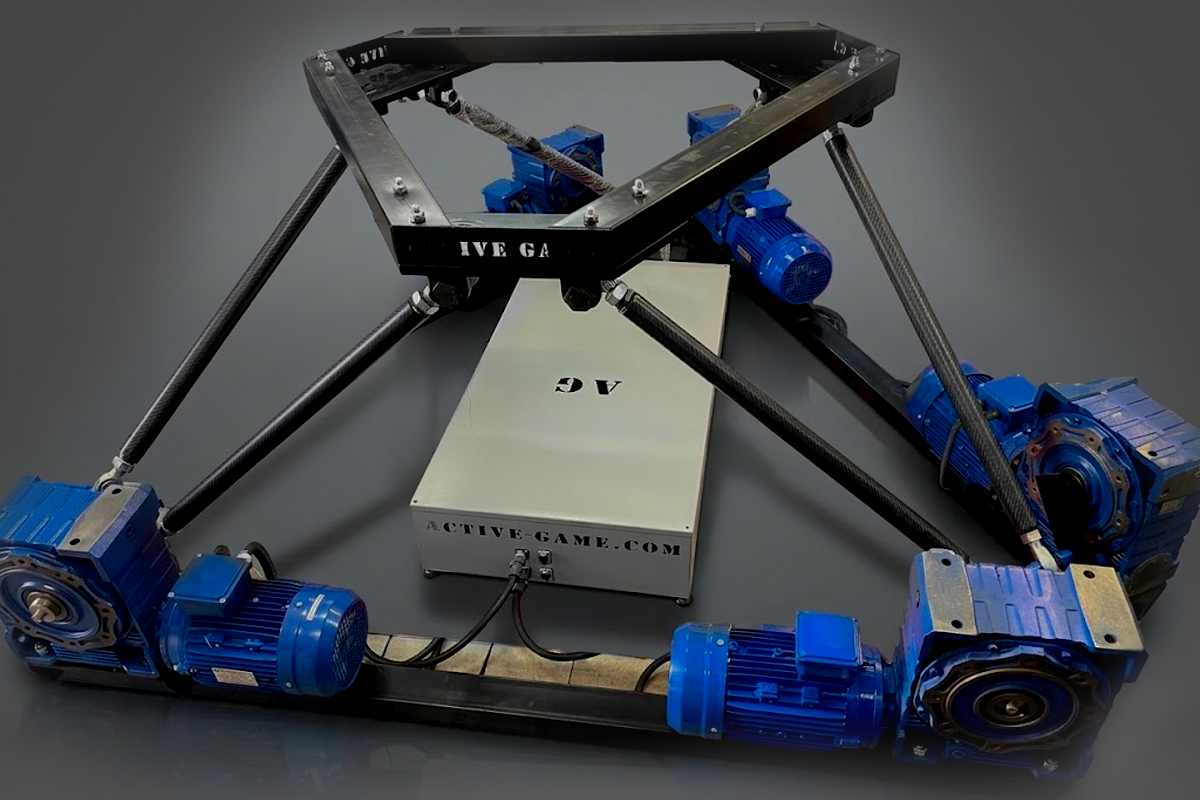

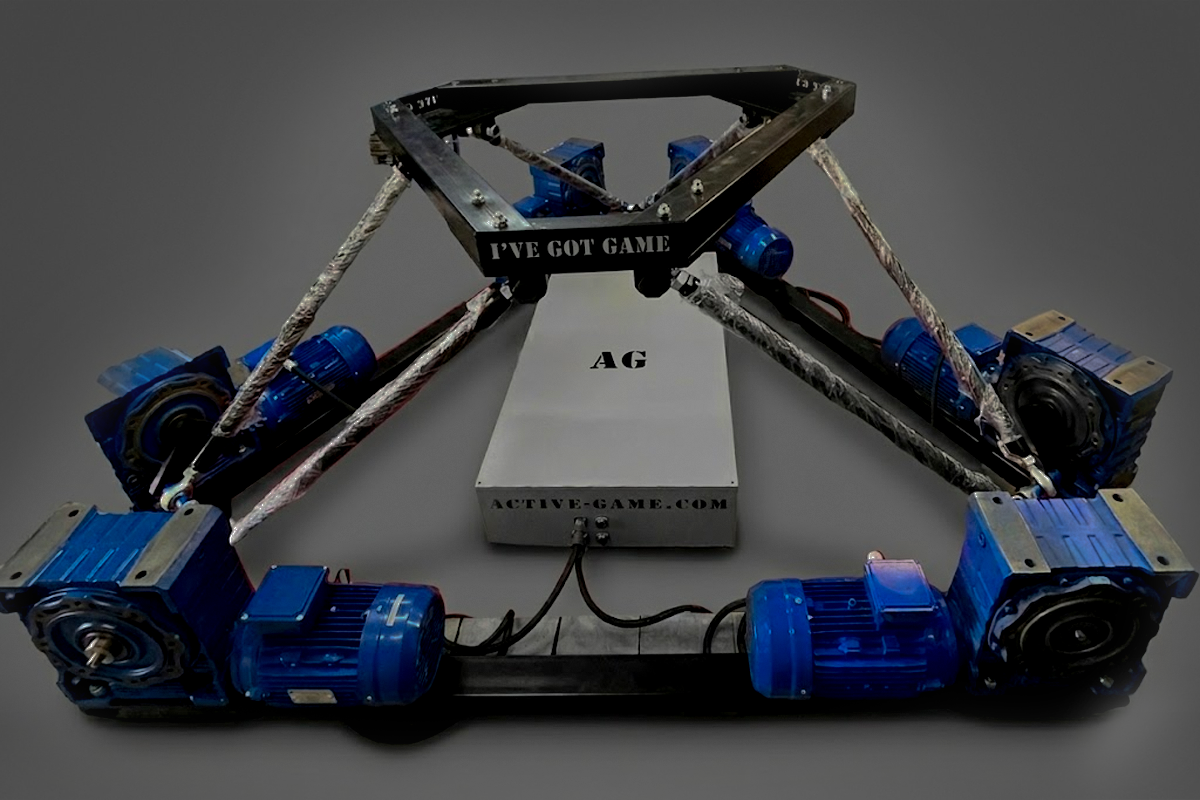

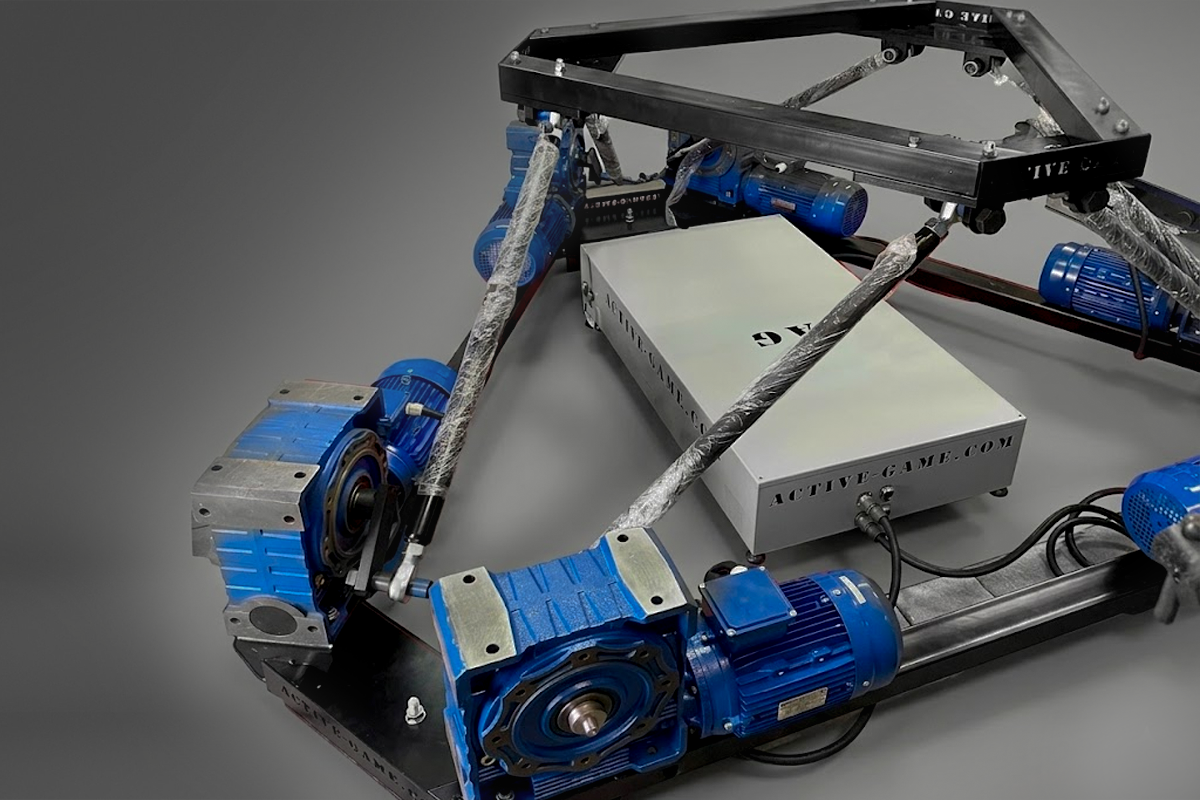

6DOF Geared Platform
6DOF Geared Platform6DOF Geared Platform6DOF Geared Platform

Specifications

Payload
up to 500 kg
Degrees of freedom
6 (roll / pitch / yaw / surge / sway / heave)
Roll
up to 44°
Pitch
up to 50°
Yaw
up to 40°
Surge / Sway / Heave
up to 240 mm
Angular speed
up to 35°/s (yaw 40°/s)
Angular acceleration
up to 300°/s²
Linear speed
up to 350 mm/s
Linear acceleration
up to 0.35 g
Dimensions (L×W×H)
180 × 180 × 85 cm
Weight
350 kg
Power
220V single-phase
Power consumption
5 kW

Range of motion is full travel between end positions; single-axis maximum values. Cabin, seats, controls, displays and VR are integrator-supplied. Final figures are confirmed in the project drawing pack. Custom payloads, extended travel envelopes and bespoke mounting interfaces are quoted on request.

Typical use cases

  • Driving and flight simulators where footprint and noise outrank peak G
  • Motion theatres, dark-ride modules and VR attractions supplied to ride builders
  • Brand-experience and showroom simulators for automotive OEMs
  • R&D, demo and university rigs that need low stand-by power
  • OEM integration into third-party cabins under private label

Configure your 6DOF Geared Platform

Choose a payload class. Ships as a motion module with Gmotion control electronics and G-Control software; cabin, seats, displays and VR are integrator-supplied.

Need a low-profile six-axis base?

Tell us ceiling height, payload and duty cycle. A drawing pack and a fixed quote come back within one business day.
