2DOF Motion Platform
Roll and pitch on a compact electric motion base. 250, 500, 1,000 and 2,000 kg classes on gear-motor crank drives.

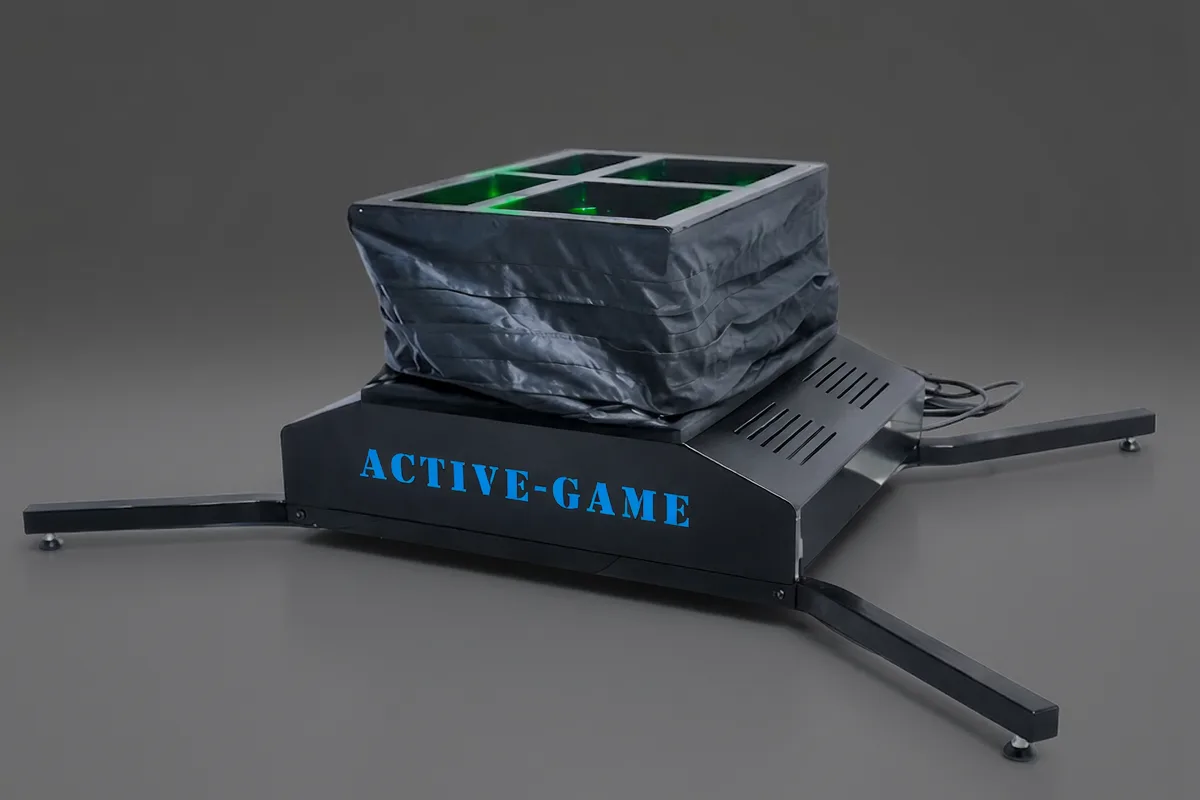

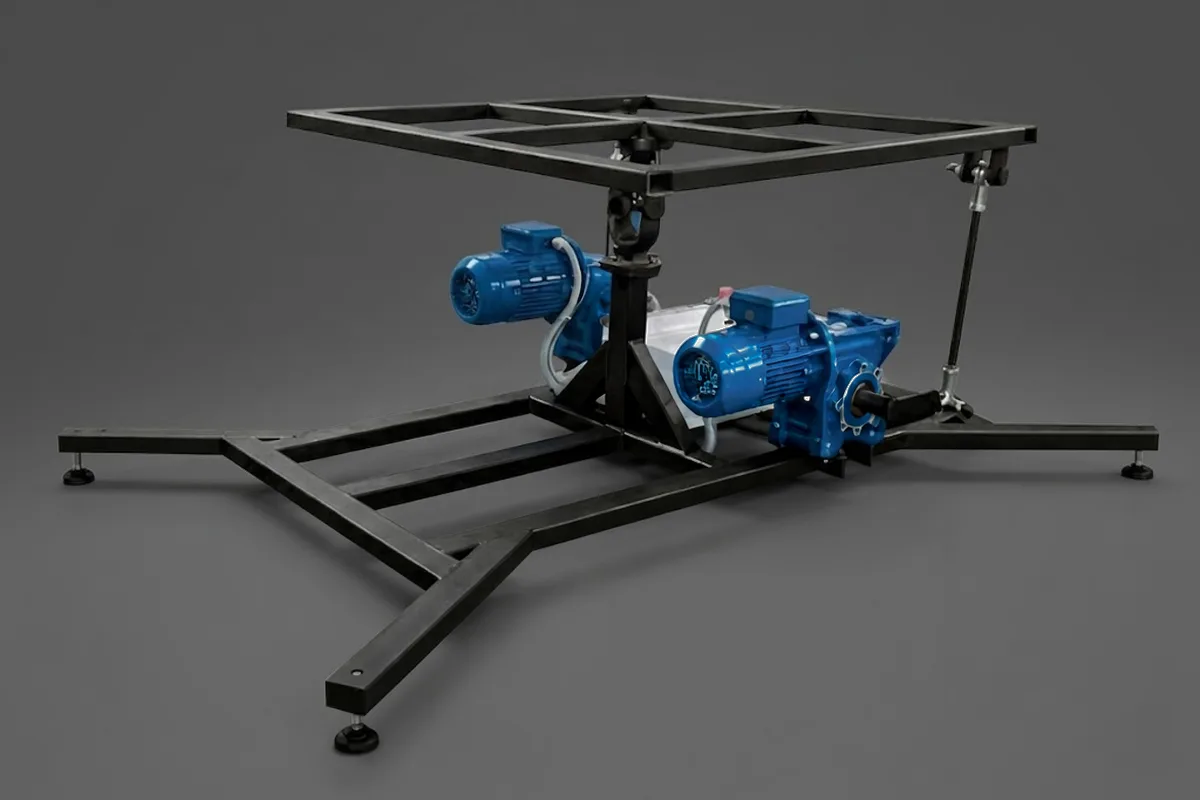

The entry point to the Gmotion platform family: a two-axis motion base that installs on a flat floor. Roll and pitch to 50° at 160°/s and 1,600°/s² — enough onset for driving, light-aircraft and VR cueing — from a 100 × 75 cm footprint in the 250 kg class. Each axis runs on an electric gear-motor with a crank arm and a frequency drive; the platform, its still frame, the Gmotion control block and the G-Control motion software ship as one unit. 220 V single-phase for the 250 and 500 kg classes, 380 V three-phase for 1,000 and 2,000 kg. No hydraulics, no compressor, no oil. Mounting-frame drawings and matching cabin frames are available; custom payload classes are quoted on engineering review. Lead time 4–8 weeks. Deployed in driver-training rigs, procedural flight trainers, showroom simulators and motion rides on four continents, both as a Gmotion product and under private label.
